Three 400mm Height Transformer Coil Winding Equipment With Conductor Wire

Product Categories
Zhu Tang (Suzhou) Technology Co., Ltd.
Contact Now

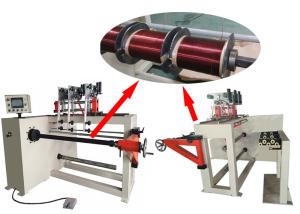

Three 400mm Height Transformer Coil Winding Equipment With Conductor Wire

Brand Name : Zhutang

Model Number : ZPX400-3

Certification : SGS, Main parts with CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 30-35 days

Packaging Details : Seaworthy wooden case packing

Center height : 900mm

Conductor : flat and round wire

Max. flat size : 5x12mm

Round wire diameter : 0.3-4.0 mm

Power : 11kw motor

Coil height : 400mm per coil max

Finished coil OD. : 600MM

Max. winding speed : 160 rpm

Contact Now

Three 400mm Height Transformer Coils Winding Machine With Conductor Wire

Description

Three 400mm Height Transformer Coils Winding Machine With Conductor Wire ZPX400-3 is a professional equipment, which can

  • Be used to winding round or flat copper wire
  • Be used to winding round or flat aluminium wire
  • Wind different shapes of coil, such as circle, oval and rectangular, etc.
  • Lay wire automatically
  • Count the number of turns
  • Be preset the parameters
  • Wind three coils at once, the coil will be same

Main Features

This machine features slow starting, smooth running, full function, high automation, easy operation and so on.

Technical Parameters

Typical standard specifications of ZPX400-3 are shown below, however these can be easily modified as requested.

Center Height: 900 mm
Square Shaft Size: 40*40*1500 mm
Shaft Connecting Mode: Fixed or dismountable (optional)
Round Wire Diameter: 0.3-4.0 mm
Max. Flat Wire Size: 5x12 mm
Minimum Coil ID.: Depends on your mold (shaft size 40*40 mm)
Max. Finished Coil OD.: 800 mm
Max. Each Coil Length: 400 mm
Insulation Decoiler Number: 1 pc
Winding Motor Power: 11 kw
Rotating Speed: 0-160 rpm
Winding Speed Regulation: Variable frequency and stepless speed regulation
Control system: PLC
Spread Pitch: Min. step: 0.01 mm
Counter: 5-digit counting, preset by segments, total numbers of turns preset, reversible counting, and power off memory, etc.
Max. Turns Number Preset: 9999.9
Counting Range: 0 - 9999.9
